2009 – 2011Farm tractor

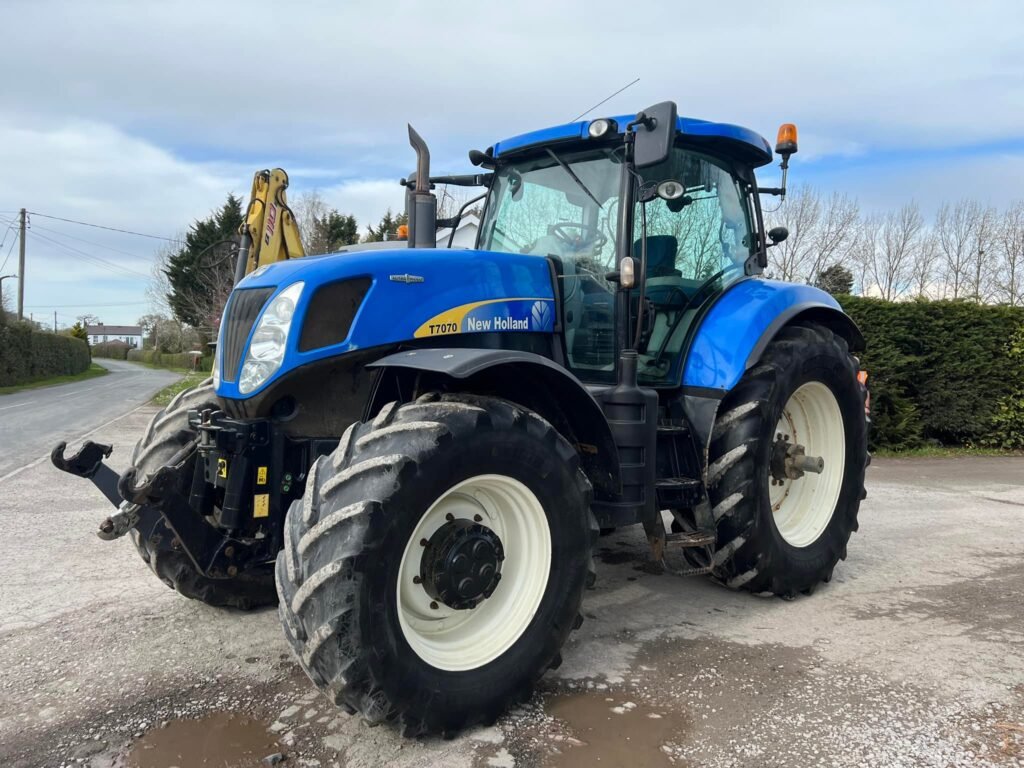

The New Holland T7070 is a farm tractor produced from 2009 to 2011. The available specifications cover 1 engine configuration and 1 transmission option; equipment could vary by production year and market.
ManufacturerNew Holland
CategoryFarm tractor
Engine options1
Transmissions1
Its row-crop configuration is intended for cultivation and work between planted rows.
Compatible with PTO-driven equipment and mounted implements through the rear three-point hitch.
Four-wheel-drive capability supports work where additional traction is valuable.
Current modelT70702009–2011225 hp| Production years | 2009–2011 |
|---|---|
| Manufacturer | New Holland |
| Row-Crop tractor | |
| Factory | Basildon, England |
| Engine | 225 hp (167.8 kW) |
|---|---|
| PTO (claimed) | 195 hp (145.4 kW) |
| Drawbar (tested) | 171.98 hp (128.2 kW) |
| PTO (tested) | 214.87 hp (160.2 kW) |
| FPT NEF 6.7L 6-cyl |
| AutoCommand | infinite forward and reverse · continuously variable transmission (CVT) |
|---|
| Four-wheel drive | |
| Hydraulic wet disc brakes | |
| Horizon Cab standard with heat and air-conditioning | |
| Steering | hydrostatic power |
|---|---|
| Trailer brakes | hydraulic optional |
| Type | closed center load sensing (CCLS) |
|---|---|
| Pump flow | 32 gpm (121.1 L/min) |
| Total flow | 49 gpm (185.5 L/min) |
| Rear valves | 3 to 5 |
| Steering flow | 17 gpm (64.3 L/min) |
| Rear hitch control | draft |
|---|---|
| Rear PTO | independent |
| Rear PTO speeds | 540 / 1000 rpm |
| Wheelbase | 113.5 in (288 cm) |
|---|---|
| Weight | 15,980 lb (7248 kg) |
| Ground | negative |
|---|---|
| Charging system | alternator |
| Charging amps | 150 |
| Battery volts | 12 |
| Battery CCA | 1300 |
