1973–1977 Farm tractor

John Deere 4030 Tests

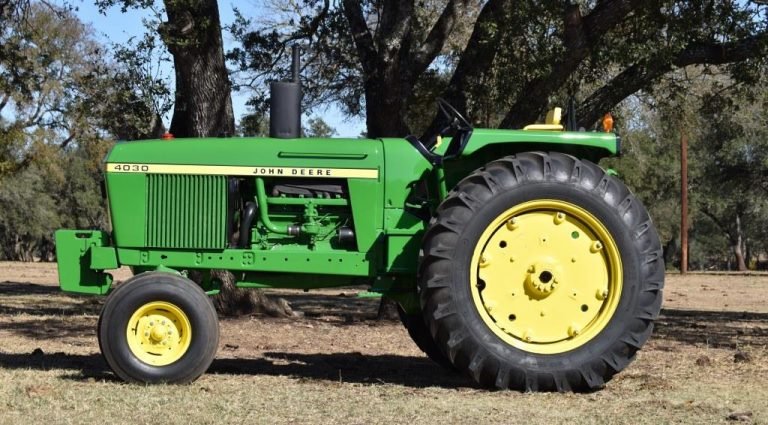

The John Deere 4030 is a farm tractor. The available specifications cover 2 engine configurations and 3 transmission options; equipment could vary by production year and market.

ManufacturerJohn DeereCurrent sectionTests← Tractor overview

Specification section

Independent tractor tests

Recorded test configurations and measured PTO, drawbar and belt performance for John Deere 4030.

Nebraska Tractor Test 1111

Diesel Quad-Range 2WD

1972-10-09 – 1972-10-13

Engine: Diesel
Transmission: Quad-Range
Drive: 2WD

PTO performance

Power at rated engine speed	80.33 hp 59.9 kW
Fuel use	5.6 gal/hour 21.2 l/hour
Power at rated PTO speed	77.72 hp 58.0 kW
Fuel use	5.0 gal/hour 18.9 l/hour

Drawbar performance

Max power	67.03 hp 50.0 kW
Fuel use	5.7 gal/hour 21.6 l/hour
Max pull	7,512 lbs 3407 kg

Test notes

Diesel Quad-Range 2WD October 9 - 13, 1972 Link: Nebraska Tractor Test 1111 file
