1964–1969 Farm tractor

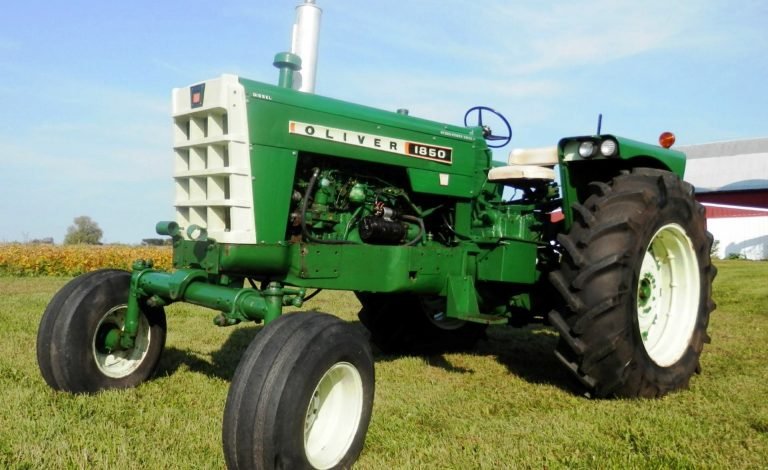

The Oliver 1850 is a farm tractor produced from 1964 to 1969. The available specifications cover 3 engine configurations and 3 transmission options; equipment could vary by production year and market.
Oliver 1850 was offered with 3 engine configurations. Specifications can vary by production year and market.
| Fuel type | Gasoline |
|---|---|
| Cylinders | 6 |
| Cooling | Liquid-cooled |
| Displacement | 310 cu in (5.1 L) |
| Bore and stroke | 3.875 × 4.375 in (98 × 111 mm) |
| Air cleaner | dry with precleaner |
| Compression | 8.5:1 |
| Rated engine speed | 2400 rpm |
| Starter voltage | 12 V |
| Oil capacity | 8 qt (7.6 L) |
| Coolant capacity | 20 qt (18.9 L) |
| Fuel type | Diesel |
|---|---|
| Cylinders | 6 |
| Cooling | Liquid-cooled |
| Displacement | 354 cu in (5.8 L) |
| Bore and stroke | 3.88 × 5.00 in (99 × 127 mm) |
| Air cleaner | dry with pre-cleaner |
| Compression | 16:1 |
| Rated engine speed | 2400 rpm |
| Starter voltage | 12 V |
| Oil capacity | 12 qt (11.4 L) |
| Coolant capacity | 20 qt (18.9 L) |
The 354 Perkins diesel in the Oliver 1850 was initially listed as a 352.
| Fuel type | Lp gas |
|---|---|
| Cylinders | 6 |
| Cooling | Liquid-cooled |
| Displacement | 310 cu in (5.1 L) |
| Bore and stroke | 3.875 × 4.375 in (98 × 111 mm) |
| Compression | 9:1 |
| Starter voltage | 12 V |
| Oil capacity | 8 qt (7.6 L) |
| Coolant capacity | 20 qt (18.9 L) |
